Stainless Steel 310/ 310S Pipes / Tubes Supplier

Stainless Steel 310 Seamless Pipes, ASTM A312 Seamless Pipe, SS 310S Welded Pipes Tubes, DIN 1.4436 Seamless Pipe, Stainless Steel 310S Seamless Pipe, SS 310 Welded Pipes, 310S Stainless Steel Seamless Pipes Manufacturer in Mumbai,India.

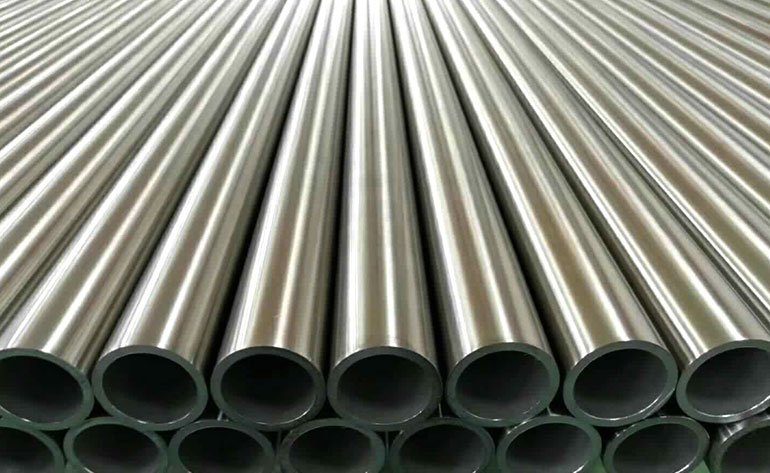

Stainless Steel 310/ 310S Pipes / Tubes

20%
VISION

50%
MISSION

98%
QUALITY


Stainless Steel 310 Seamless Pipe Supplier, SS 310S Welded Pipes Manufacturer, ASTM A312 Seamless Pipe, ASME SA312 SS 310S Welded Pipes, DIN 1.4436 Welded Pipes, Grade 310 Welded Tubes Supplier in Mumbai, India.

Stanley Alloys is the most evolving company in the manufacturing of Stainless Steel 310 Seamless Pipes. We are well known for our superior quality products and accurate timely services. Our every single product is manufactured under the expert’s supervision. We also offer various other stainless grades and their respective pipes and tubes.

Stainless Steel 310S Welded Pipes contains good resistivity towards oxidizing agents in the air up intermitting service by 1035°C as well as 1050°C in continuous services. Alloy 310/ 310S Pipes have no content of molybdenum due to which resistivity against pitting is very less. However, 310/310S Tubes are resistant to sulfidation and Oxidizing as well as carburization.

310 Stainless Steel Pipes are in massive demand with top quality service as well for which we are recognized. Its usage has varied instruments such as Welding Filler Wire, Heat Exchangers, Oil Burner Parts, Annealing Covers, Fire Box Sheets, Furnace Parts, Electrodes, Combustion Tubes, and also used many other instruments as well due to its high increasing demand.

We follow strict rules and regulations while manufacturing all products. ASME SA312 TP 310 Pipe grade is made with a combination of special alloys that offers extreme resistance and endurance. This grade also has high outstanding thermal conductivity.

Specification of Stainless Steel 310/ 310S Pipes/Tubes

Pipe Specifications: ASTM A312, A358 / ASME SA312, SA358

Tube Specifications: ASTM A213, A269, A249, A511, A554 / ASME SA213, SA269, SA249, SA511, SA554

Dimensions: ANSI B36.19, ANSI B36.10

Pipe Outside Diameter: 6.00 mm OD up to 914.4 mm OD, Sizes up to 24" NB available Ex-stock, OD Size Steel Tubes available Ex-stock

Tube Outside Diameter: 1/8" OD TO 2"OD 3MM OD TO 38 MM OD

Thickness Range: 1MM TO 3 MM 0.028 TO 0.156 IN, SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS

Type: Seamless / ERW / Welded / Capillary Tubes

Form: Round Tube, Square Tube, Rectangular Tube

Length: Single Random, Double Random & Required Length

End: Plain End, Beveled End, Treaded

End Protection: Plastic Caps

Finish: Annealed and Pickled, Polished, Bright Annealed, Cold Drawn

External Coating: 3LPE / 3LPP/ FBE/ DFBE/ PP


Stainless steel 310 Seamless Pipes also has heat resistance which is why it is considered an ideal application for high heat temperatures. The most important feature of these pipes is that they provide excellent stability in high pressure. Stainless steel 310/310s seamless and welded pipes are highly ductile, weldable, workable, and strong. The perfect temperature range for these seamless and welded pipes is 1035°C. Along with 24% of chromium and 19% nickel, these stainless steel 310S seamless and welded pipes also include silicon, manganese, carbon, and phosphorous.

Stainless steel 310 seamless and welded pipes are reinforced with extraordinary qualities such as high tensile and yield strength. Stainless steel 310/310S seamless and welded pipes sizes vary from ½ mm to 100mm. These pipes are 100% weldable and also support heat treatments.

Available Types of Stainless Steel 310/ 310S Pipes/Tubes

SS 310/ 310S Seamless Pipes

Seamless Pipes

Seamless Pipes

ASTM A312 SS 310 Seamless Pipes
310S Stainless Steel Seamless Pipe
ANSI B16.5 SS 310 Seamless Pipe
UNS S31000 Seamless Pipes Supplier
Werkstoff Nr. 1.4841 Seamless Pipes Exporter.
SS 310/ 310S Welded Pipes

Welded Pipes

Welded Pipes

ASTM A312 SS 310 Welded Pipes
310S Stainless Steel Welded Pipe
ANSI B36.10 SS 310 Welded Pipe
UNS S31000 SS Welded Pipes Supplier
DIN 1.4841 Welded Pipes Exporter.
SS 310/ 310S Seamless Tubes

Seamless Tubes

Seamless Tubes

ASTM A312 SS 310 Seamless Tubes
310S Stainless Steel Seamless Tube
ASME SA312 SS 310S Seamless Tubes
UNS S31000 SS Seamless Tubes Supplier
Werkstoff Nr. 1.4845 Seamless Tubes Exporter.
SS 310/ 310S Welded Tubes

Welded Tubes

Welded Tubes

ASTM A312 SS 310 Welded Tubes
310S Stainless Steel Welded Tubing
ASME SA312 SS 310 Welded Tubes
UNS S31000 SS Welded Tubes Supplier
Werkstoff Nr. 1.4841 Welded Tubes Exporter.
SS 310/ 310S ERW Pipes/Tubes

ERW Pipes/Tubes

ERW Pipes/Tubes

ASTM A312 SS 310 ERW Pipes
SS 310S ERW Round Tubes
310S Stainless Steel ERW Pipes
SS 310 ERW Pipes Supplier
DIN 1.4845 ERW Tubes Exporter.
SS 310/ 310S EFW Pipes/Tubes

EFW Pipes

EFW Pipes

ASTM A358 SS 310 EFW Pipes
ANSI B36.19 SS 310S EFW Pipes
310S Stainless Steel EFW Pipes
SS UNS S31008 EFW Pipes Supplier
Werkstoff Nr. 1.4845 EFW Pipes Exporter.

Equivalent Grades of Stainless Steel 310/ 310S Pipes & Tubes

Grade UNS No Old British Euronorm Swedish SS Japanese JIS
BS En No Name
310 S31000 310S24 - 1.4841 X15CrNi25-20 - SUS 310
310S S31008 310S16 - 1.4845 X8CrNi25-21 2361 SUS 310S

Chemical Composition of Stainless Steel 310/ 310S Pipes-Tubes

Grade

C

Mn

Si

P

S

Cr

Mo

Ni

N

310

min.
max.

-
0.25

-
2.00

-
1.50

-
0.045

-
0.030

24.0
26.0

-

19.0
22.0

-

310S min.
max.
-
0.08
-
2.00
-
1.50
-
0.045
-
0.030
24.0
26.0
- 19.0
22.0
-

Stainless Steel 310/ 310S Pipes/Tubes Mechanical Properties

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
310/ 310S 515 205 40 95 217

Weight Chart of 310 Stainless Steel Pipes

Nominal size [inches] Outside diameter [inches] Outside diameter [mm] Wall thickness [inches] Wall thickness [mm] Weight [lb/ft] Weight [kg/m]
1/8 0.405 10.3 0.095 2.41 0.31 0.47
1/4 0.54 13.7 0.119 3.02 0.54 0.8
1/2 0.84 21.3 0.147 3.73 1.09 1.62
3/4 1.05 26.7 0.154 3.91 1.47 2.2
1 1.315 33.4 0.179 4.55 2.17 3.24
1 1/4 1.66 42.2 0.191 4.85 3 4.47
1 1/2 1.9 48.3 0.2 5.08 3.63 5.41
2 2.375 60.3 0.218 5.54 5.02 7.48
2 1/2 2.875 73 0.276 7.01 7.66 11.41
3 3.5 88.9 0.3 7.62 10.25 15.27
3 1/2 4 101.6 0.318 8.08 12.5 18.63
4 4.5 114.3 0.337 8.56 14.98 22.32
5 5.563 141.3 0.375 9.53 20.78 30.97
6 6.625 168.3 0.432 10.97 28.57 42.56
8 8.625 219.1 0.5 12.7 43.39 64.64
10 10.75 273 0.594 15.09 64.43 96.01
12 12.75 323.8 0.688 17.48 88.63 132.08
14 14 355.6 0.75 19.05 106.13 158.1
16 16 406.4 0.844 21.44 136.61 203.53
18 18 457 0.938 23.83 170.92 254.55
20 20 508 1.031 26.19 208.87 311.17
24 24 610 1.125 30.96 296.58 442.08

Schedule Chart of 310 ERW Pipes

1/8" IPS(.405"O. D.) 3 1/2" IPS( 4.000"O. D.)
SCH 40, 80 SCH 10, 40, 80, 160, XXH
1/4" IPS(.540"O. D.) 4" IPS(4.500"O. D.)
SCH 10, 40, 80 SCH 10, 40, 80, 160, XXH
3/8" IPS(.675"O. D.) 5" IPS( 5.563"O. D.)
SCH 10, 40, 80 SCH 10, 40, 80, 160, XXH
1/2" IPS(.840"O. D.) 6" IPS(6.625"O. D.)
SCH 5, 10, 40, 80, 160, XXH SCH 5, 10, 40, 80, 120, 160, XXH
3/4" IPS(1.050"O. D.) 8 ” IPS(8.625"O. D.)
SCH 10, 40, 80, 160, XXH SCH 5, 10, 40, 80, 120, 160, XXH
1" IPS:(1.315′O. D.) 10" IPS(10.750"O. D.)
SCH 5, 10, 40, 80, 160, XXH SCH 10, 20, 40, 80 (.500), TRUE 80(.500)
1-1/4" IPS(1.660"O. D.) 12" IPS(12.750"O. D.)
SCH 10, 40, 80, 160, XXH SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500)
1-1/2" IPS(1.900"O. D.) 14" IPS(14.000"O. D.)
SCH 10, 40, 80, 160, XXH SCH10 (.188), SCH40 (.375)
2" IPS(2.375"O. D.) 16" IPS(16.000"O. D.)
SCH 10, 40, 80, 160, XXH SCH10(.188), SCH40(.375)
2 1/2" IPS(2.875"O. D.) 18" IPS (18.000"O. D.)
SCH 10, 40, 80, 160, XXH SCH-40 (.375)
3" IPS( 3.500"O. D.)
SCH 5, 10, 40, 80, 160, XXH

310 SS Pipe Pressure Rating Chart

Pipe Size
(inches)
Pipe Schedule Temperature (°F)
100 200 300 400 500 600 650 700 750
1" 40 3048 2629 2362 2171 2019 1924 1867 1824 1810
1" 80 4213 3634 3265 3002 2791 2659 2580 2528 2501
1" 160 6140 5296 4759 4375 4068 3876 3761 3684 3646
1.5" 40 2257 1947 1750 1608 1496 1425 1383 1354 1340
1.5" 80 3182 2744 2466 2267 2108 2009 1949 1909 1889
1.5" 160 4619 3984 3580 3291 3060 2916 2829 2772 2743
2" 40 1902 1640 1474 1355 1260 1201 1165 1141 1129
2" 80 2747 2369 2129 1957 1820 1734 1682 1648 1631
2" 160 4499 3880 3486 3205 2980 2840 2755 2699 2671
3" 40 1806 1558 1400 1287 1196 1140 1106 1084 1072
3" 80 2553 2202 1979 1819 1691 1612 1564 1532 1516
3" 160 3840 3312 2976 2736 2544 2424 2352 2304 2280
4" 40 1531 1321 1187 1091 1014 967 938 919 909
4" 80 2213 1909 1715 1577 1466 1397 1355 1328 1314
4" 160 3601 3106 2791 2566 2386 2273 2206 2161 2138
5" 40 1342 1158 1040 956 889 847 822 805 797
5" 80 1981 1709 1535 1411 1312 1250 1213 1189 1176
5" 160 3414 2945 2646 2433 2262 2155 2091 2049 2027
6" 40 1219 1052 945 869 808 770 747 732 724
6" 80 1913 1650 1483 1363 1267 1208 1172 1148 1136
6" 160 3289 2836 2549 2343 2179 2076 2014 1973 1953
8" 40 1073 926 832 765 711 678 657 644 637
8" 80 1692 1459 1311 1205 1121 1068 1036 1015 1005
8" 160 3175 2738 2460 2262 2103 2004 1944 1905 1885
10" 40 974 840 755 694 945 615 596 584 578
10" 80 1609 1388 1247 1147 1066 1016 986 966 956
10" 160 3147 2714 2439 2242 2085 1986 1927 1880 1868

Stainless Steel 310/ 310S Pipes/Tubes Make

Manufacturer of Dalmine Stainless Steel 310/ 310S Pipes
Tubacex Make Stainless Steel TP310/ 310S Tubes Exporter
Nippon Steel & Sumitomo Metal Make Stainless Steel 310/ 310S Seamless Pipes
Sumitomo Make Stainless Steel 310/ 310S Welded Pipes Supplier
Arcelor Mittal Make SS 310/ 310S Plain End Pipes
JFE Steel Corporation Make SS 310/ 310S Seamless Tubes Dealer
Ratnamani Make Stainless Steel 310/ 310S Hollow Pipes
Outokumpu Make Stainless Steel 310/ 310S Pipes Exporter
Welspun Make SS 310/ 310S Large Diameter Pipes/Tubes
V & M Make SS 310/ 310S Electric Fusion Welding pipe
MSL Make SS 310/ 310S Seamless pipe/tube Supplier
Jindal Saw Ltd Make Stainless Steel 310/ 310S Pipes/Tubes
